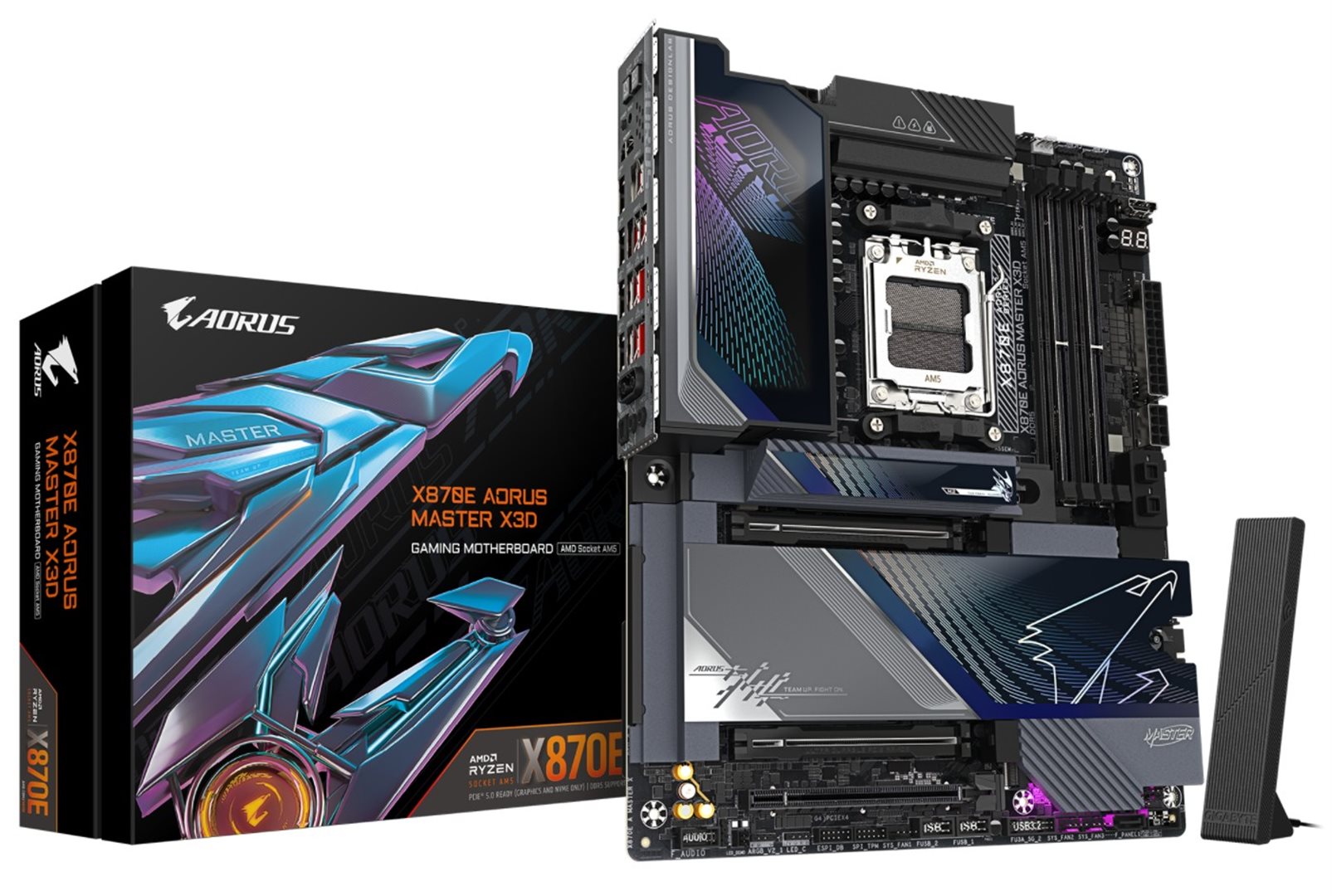

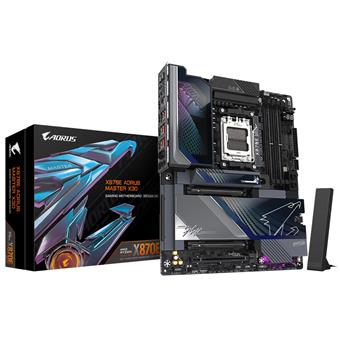

Gigabyte X870E AORUS MASTER X3D/ AM5/ ATX

Gigabyte X870E AORUS MASTER X3D

Chipset: AMD X870E
Rozmerový formát: ATX Form Factor; 30.5cm x 24.4cm
Podpora pre procesory:

• AMD Ryzen 9000 Series Processors
• AMD Ryzen 8000 Series Processors
• AMD Ryzen 7000 Series Processors

Pätica procesora: AM5

Pamäť:

• Podpora pre DDR5 9000(OC) / 8800(OC) / 8600(OC) / 8400(OC) / 8200(OC)/ 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s memory modules
• 4x DDR5 DIMM sloty podporujúce až 256GB (64GB každý slot) pamäte
• Dual channel memory architecture
• Podpora pre non-ECC Un-buffered DIMM moduly
• Podpora pre AMD EXPO a XMP

Grafické porty:

Integrated Graphics Processor with Radeon™ AMD Graphics support+ASMedia USB4® Controller:

• 2 x USB4® USB Type-C® porty, podporujúce USB4 a DisplayPort video výstupy a maximálne resolution of 3840x2160@240 Hz

Integrated Graphics Processor with AMD Radeon™ Graphics support:

• 1 x HDMI port, podpora a maximum resolution of 4096x2160@60 Hz
• 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

Zvuková karta:

• Realtek® ALC1220 CODEC
• ESS ES9118 DAC chip
• Support for DTS:X® Ultra
• High Definition Audio
• 2/4/5.1-channel

Ethernet:

• Realtek® 5 GbE LAN čip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
• Realtek® 10 GbE LAN čip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN2)

WLAN + Bluetooth: MediaTek Wi-Fi 7 MT7927, RZ738

• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.4
• Support for 11be 320MHz bezdrôtový štandard

Rozširujúce sloty:

1 x PCI Express x16 slot (PCIEX16), integrovaný v CPU

• AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

1 x PCI Express x16 slot (PCIEX8), integrovaný v CPU:

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode

Chipset:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

RAID radič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný priestor:

1 x M.2 konektor (M2A_CPU), integrovaný v CPU, supporting Socket 3, M kľúč, typ 2580/2280 SSDs:

• AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 konektor (M2B_CPU), integrovaný v CPU, supporting Socket 3, M kľúč, typ 2280 SSDs

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• 2 x M.2 konektory (M2C_SB, M2D_SB), integrované v chipsete, podporujúce Socket 3, M kľúč, typ 2280 PCIe 4.0 x4/x2 SSDs
• 1 x M.2 konektor (M2E_SB), integrovaný v chipsete, supporting Socket 3, M kľúč, typ 2280 PCIe 4.0 x2 SSDs
• 2 x SATA 6Gb/s konektory

USB:

CPU+ASMedia USB4® controller:

• 2 x USB4® USB Type-C® porty na back panel

CPU:

• 1 x USB 3.2 Gen 2 Type-A port (red) na zadnom paneli

Chipset+USB 3.2 Gen 1 Hub:

• 4 x USB 3.2 Gen 1 ports dostupný cez vnútorné USB headers

Chipset:

• 1 x USB Type-C® port na zadnom paneli, s USB 3.2 Gen 2x2 support
• 1 USB Type-C® port na zadnom paneli, s USB 3.2 Gen 2 support
• 1 x port USB Type-C® s podporou USB 3.2 Gen 2x2, dostupnou prostredníctvom vnútorného USB headeru (Supports up to 65W PD 3.0/QC 4+ fast charging)
• 6 x USB 3.2 Gen 2 Type-A porty (red) on the back panel
• 4 x USB 2.0/1.1 ports dostupná cez vnútorné USB headers

Interné porty:

Napájanie

• 1× 24-pin ATX main power connector
• 2× 8-pin ATX 12V power connectors
• 1× PCIe power connector
• 1× CPU fan header
• 1× CPU fan / water cooling pump header
• 4× system fan headers
• 1× systém fan extension cable header
• 1× system fan / water cooling pump header

Súvisiace s úložiskom

• 5× M.2 Socket 3 connectors
• 2× SATA 6Gb/s connectors

USB

• 1× USB Type-C header, USB 3.2 Gen 2x2
• 2× USB 3.2 Gen 1 headers
• 2× USB 2.0/1.1 headers

Ostatné

• 4× addressable RGB Gen2 LED strip headers
• 1× RGB LED strip header
• 1× front panel header
• 1× front panel audio header
• 1× speaker header
• 1× noise detection header
• 1× Trusted Platform Module header
• 1× HDMI port
• 1× chassis intrusion header
• 1× reset jumper
• 1× Clear CMOS jumper
• 2× temperature sensor headers

Porty na zadnom paneli:

• 1 x Q-Flash Plus button
• 1 x Clear CMOS button
• 1 x reset button
• 1 x power button
• 1 x HDMI port (Note)
• 2 x USB4® USB Type-C® ports (DisplayPorts (Note))
• 1 x USB Type-C® port, s USB 3.2 Gen 2 support
• 1 USB Type-C® port, s USB 3.2 Gen 2x2 support
• 7 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x RJ-45 ports
• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optický S/PDIF Out connector

BIOS:

• 1 x 512 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitorovanie:

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

OS: Podpora pre Windows 11 64-bit
