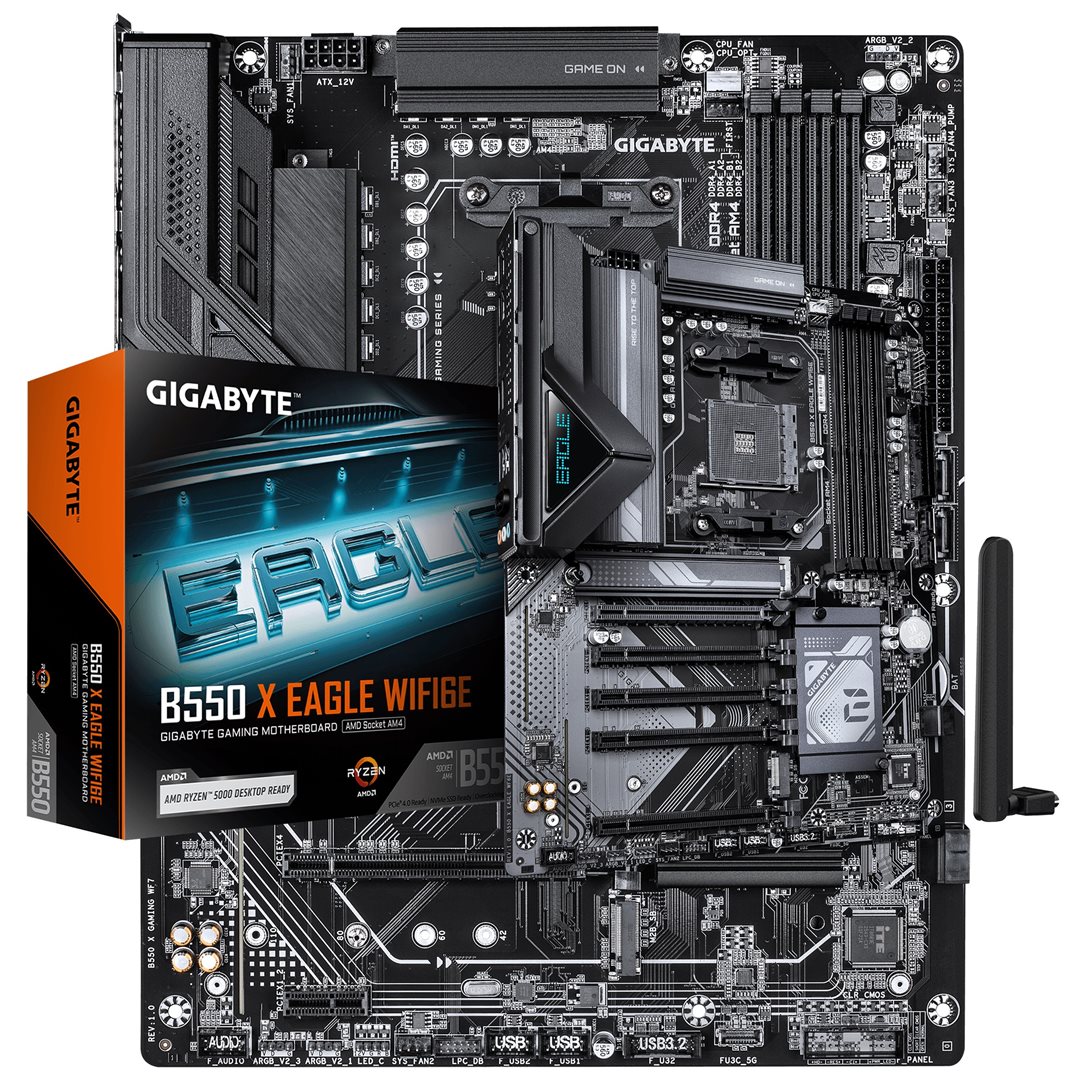

GIGABYTE B550 X EAGLE WIFI6E

Gigabyte B550 X EAGLE WIFI6E

Chipset: AMD B550Rozmerový formát: ATX Form Factor; 30.5cm x 24.4cm
Podpora pre procesory:

• AMD Ryzen™ 5000 G-Series Processors
• AMD Ryzen™ 5000 Series Processors
• AMD Ryzen™ 4000 G-Series Processors
• AMD Ryzen™ 3000 G-Series Processors
• AMD Ryzen™ 3000 Series Processors

Pätica procesora: AM4

Pamäť:

• 4x DDR4 DIMM sloty podporujúce až 128GB (32GB každý slot) pamäte
• Podpora pre DDR4 3200/2933/2667/2400/2133 MT/s moduly
• Dual channel memory architecture
• Podpora pre ECC Un-buffered DIMM 1Rx8/2Rx8 moduly
• Podpora pre non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly
• Podpora pre XMP

Grafické porty: Integrated Graphics Processor with AMD Radeon™ Graphics support:

• 1 x HDMI port, podpora a maximum resolution of 4096x2160@60 Hz

Zvuková karta:

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Ethernet: Realtek® 2.5 GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WLAN + Bluetooth: MediaTek Wi-Fi 6E MT7902

• WIFI a, b, g, n, ac, ax, podpora 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz bezdrôtový štandard

Rozširujúce sloty: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

• AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
• AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode

Chipset:

• 4 x PCI Express x16 zásuviek, supporting PCIe 3.0 a beží na x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)

RAID radič: RAID 0, RAID 1, RAID 10

Úložný priestor:

1 x M.2 konektor (M2A_CPU), integrovaný v CPU, supporting Socket 3, M kľúč, typ 22110/2280 SSDs:

• AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 konektor (M2B_SB), integrovaný v chipsete, supporting Socket 3, M kľúč, typ 22110/2280 PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s konektory

USB:

CPU:

• AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel
• AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support jeden USB 3.2 Gen 1 port (red) on the back panel
• 1 USB Type-C® port na zadnom paneli, s USB 3.2 Gen 1 support
• 2 x USB 3.2 Gen 1 ports on the back panel

Chipset:

• 1 USB Type-C® port s USB 3.2 Gen 1 support, dostupný prostredníctvom vnútorného USB headeru
• 2 x USB 3.2 Gen 1 ports dostupná prostredníctvom vnútorného USB headeru
• 4 x USB 2.0/1.1 ports dostupná cez vnútorné USB headers

Chipset+USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports on the back panel

Interné porty:

Napájanie

• 1× 24-pin ATX main power connector
• 1× 8-pin ATX 12V power connector
• 1× CPU fan header
• 1× CPU fan / water cooling pump header
• 3× system fan headers
• 1× system fan / water cooling pump header

Súvisiace s úložiskom

• 2× M.2 Socket 3 connectors
• 4× SATA 6Gb/s connectors

USB

• 1× USB Type-C header, USB 3.2 Gen 1
• 1× USB 3.2 Gen 1 header
• 2× USB 2.0/1.1 headers

Ostatné

• 3× addressable RGB Gen2 LED strip headers
• 1× RGB LED strip header
• 1× front panel header
• 1× front panel audio header
• 1× Clear CMOS jumper

Porty na zadnom paneli:

• 4 x USB 2.0/1.1 ports
• 1 x HDMI port (Note)
• 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red)
• 1 USB Type-C® port, s USB 3.2 Gen 1 support
• 1 x Q-Flash Plus button
• 1 x RJ-45 port
• 2 x USB 3.2 Gen 1 ports
• 2 x antenna connectors (1T1R)
• 3 x audio jacks

BIOS:

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitorovanie:

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

OS: Podpora pre Windows 11 64-bit a Windows 10 64-bit
